Tillage Parts

High Productivity Perma-Loc Quick Change Sweeps




These sweeps deliver the ultimate in performance, productivity and ease of change-
out; available in four wing widths for nearly all feld cultivators.

Designed for top performance at 7-10 mph

Low draft and more consistent penetration



NUMBER

SIZE

THICKNESS

N331099

7-in.

1/4-in.

N331100

9-in.

1/4-in.

N331101

10-in.

1/4-in.

N331102

12-in.

1/4-in.

Tru-Width™ Perma-Loc Quick Change Sweeps




Proven, Tru-Width design maintains cutting width throughout sweep life. Sweepswill ft most competitive equipment with a 47-deg. shank. The Perma-Loc QuickChange system allows ease of change-out and maximum retention to the shank.



NUMBER

SIZE

THICKNESS

N403769

2-in.

1/4-in.

N238333

7-in.

1/4-in.

N238333XLT

7-in.

1/4-in.

N238334

9-in.

1/4-in.

N238334XLT

9-in.

1/4-in.

N238335

10-in.

1/4-in.

N238335XLT

10-in.

1/4-in.

N238336

12-in.

1/4-in.

N238336XLT

12-in.

1/4-in.



Perma-Loc Adapters and Springs



Heavy-duty cast adapter with stainless steel locking spring ensures a tight ft andeasy installation. Optional removal tool available for quick change of the sweep.



NUMBER

DESCRIPTION

Adapters:



N237614

47-degree curved adapter

N237616

51-degree curved adapter

N330001

47-degree fat for DMi

Locking Springs:

N237620

For 47 degree adapter

N237621

For 51 degree adapter

Removal Tool:



N237623

Optional removal tool



High Productivity Bolt-On sweeps




same outstanding wing design and performance/productivity you expect in a bolt-on option, with four medium wing widths to meet your needs.



NUMBER

SIZE

THICKNESS

N331103

7-in.

1/4-in.

N331104

9-in.

1/4-in.

N331105

10-in.

1/4-in.

N331106

12-in.

1/4-in.

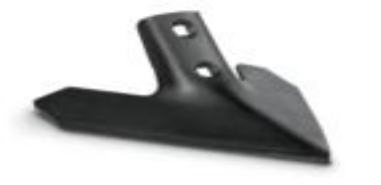

Tru-Width  Bolt-On sweeps

These sweeps offer great value in the Tru-Width wing design in a standard bolt-on style. Fits all cultivators with 47-deg. shank with 7/16-in. bolt holes and 1 3/4-in. spacing.



NUMBER

SIZE

THICKNESS

CROWN

N182039

7-in.

1/4-in.

Medium

N182113

9-in.

1/4-in.

low

N182040

9-in.

1/4-in.

Medium

N182114

10-in.

1/4-in.

low

N182041

10-in.

1/4-in.

Medium

N182042

11-in.

1/4-in.

Medium

N182043

12-in.

1/4-in.

Medium

N182117

16-in.

1/4-in.

low





Conventional Wing sweeps for row-Crop Cultivators




These conventional wing sweeps provide excellent soil mixing and residue retention. The wing ends are clipped for minimum soil side throw.



NUMBER                   SIZE                         THICKNESS                  SHANK ANGLE

Narrow wing, medium crown:

N239040

4-in.

3/16-in.

55-degree

N239041

6-in.

3/16-in.

55-degree

N239042

8-in.

3/16-in.

55-degree

N239043

10-in.

3/16-in.

55-degree



XlTsweepsforFieldandrow-CropCultivators




The XlT sweeps have a special alloy coating applied to high wear areas for added durability in rocky soil conditions.

Tru-Width™wing sweeps for feld cultivators:

N182039XLT

7-in.

1/4-in.

47-degree

N182040XLT

9-in.

1/4-in.

47-degree

N182041XLT

10-in.

1/4-in.

47-degree

N182042XLT

11-in.

1/4-in.

47-degree

N182043XLT

12-in.

1/4-in.

47-degree
