John Deere Baler Parts & Attachments


Diamond Chain®

■ Designs each component and has a rigorous quality-control system to ensure only qualifed pieces reach the assembly area
■ Heat treats components using dedicated carburizing furnaces set to precise temperatures
■ Uses proprietary shot-peening machinery developed and custom-made to ensure consistent intensity and coverage of components during the shot-peening process
■ Uses both a proprietary lubrication formula and hot-dip application process on all lubricated roller chains
■ Preloads all chain which approximates the recommended maximum loading during usage. This is done to frmly seat pins and bushings in place and eliminate any initial elongation that may occcur

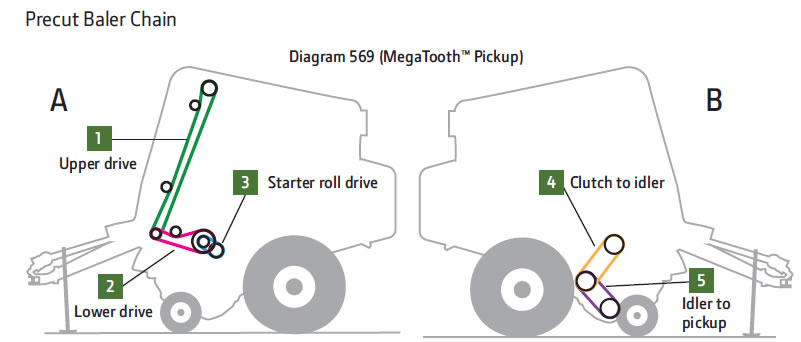

NUMBER

APPLICATION

SIZE / LINKS

  Pickup Drive (Regular Pickup):
  AFH208830 * 449, 459, 459 Standard, 559, and 569 50-72
  Clutch to idler (MegaTooth Pickup):
  AFH205493 * 569 50-111
  Idler to pickup (MegaTooth Pickup):
  AFH208828 569 50-74
  Clutch to rotor (MegaWide™ Pickup):
  AFH205492 449, 459, 459S, 469, 469P, 469S, 559, 559S, 569, 569P, 469S 50-102
  Rotor to reel (MegaWide Pickup):
  AFH208473 449, 459, 459S, 469, 469S, 559, 559S, 569, and 469S 50-79
  AFH205377 469P and 569P 50-89
  Upper drive:
  AFH206114 * 569, 469, and 469S 80-158
  AFH206112 * 569P and 469P 80H-158
  Starter roll drive:
  AFH208831 * 449, 459, 459 Standard, 459S, 469, 469P, 469S, 559, 559S, 569, 569S, and 569P 60H-42
  Lower drive:
  AFH206115 * 569 and 469 80-64
  AFH206113 * 569P and 469P 80H-64
  * Diamond Chain

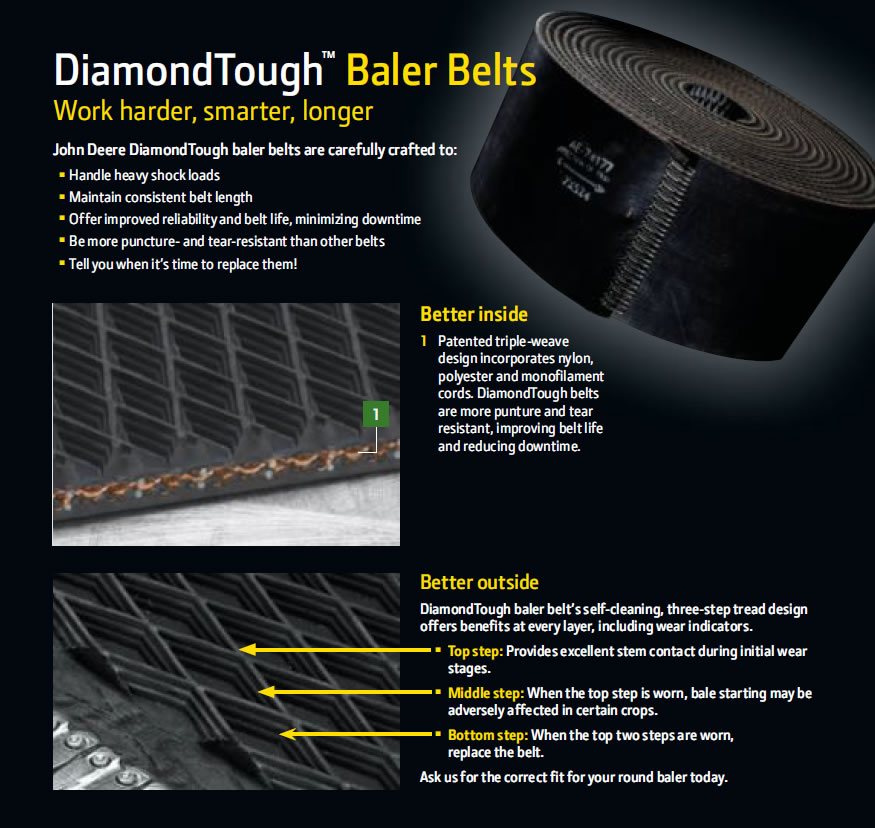

John Deere Baler Belts for Round Balers



NUMBER

DESCRIPTION/APPLICATION

baler-belts.jpg DiamondTough:
Short:
AE74209 458, 458S, 459, 459S, 558, 559, and 559S
AE74177 468, 468S, 469, 469S, 469P, 568, 569, and 569P
Long:
AE74210 458, 458S, 459, 459S, 558, 559, and 559S
AE74178 468, 468S, 469, 469S, 469P, 568, 569, and 569P

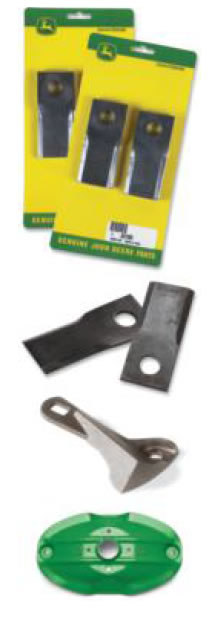

Rotary Mower/Conditioner Parts

  John Deere rotary knives:
■ Made with boron steel and austemper heat treatment for maximum strength
■ Designed with a milled cutting edge and formed with a slight twist, which provides a lifting action as the crop is cut


NUMBER

DESCRIPTION

APPLICATION

rotary-mower-parts.jpg KITS – Knives:
AE71253 Counterclockwise, 6-pack 730, 735, 830, 835, 910, 915, 916, 920, 925, 926, 930, 935, 936, 945, 946, 955, and 956 Conditioners
AE71255 Clockwise, 6-pack 730, 735, 830, 735, 910, 915, 916, 920, 925, 926, 930, 935, 936, 945, 946, 955, and 956 Conditioners
AE71254 Knife bolt 500, 600, 700, 800, and 900 series mower conditioners
Knives:
FH323281 Counterclockwise 500, 600, 700, 800, and 900 series mower conditioners
FH323282 Clockwise 500, 600, 700, 800, and 900 series mower conditioners
FH308234 Counterclockwise, high lift 500, 600, 700, 800, and 900 series mower conditioners
FH308235 Clockwise, high lift 500, 600, 700, 800, and 900 series mower conditioners
CC44007 Standard, left-hand, counterclockwise 240 and 260 rotary mowers; and 1320, 1326, and 1327 conditioners
CC44006 Standard, right-hand, clockwise 240 and 260 rotary mowers; and 1320, 1326, and 1327 conditioners
CC44005 Heavy-duty, left-hand, counterclockwise 240 and 260 rotary mowers; and 1320, 1326, and 1327 conditioners
CC44004 Heavy-duty, right-hand, clockwise 240 and 260 rotary mowers; and 1320, 1326, and 1327 conditioners
Accelerators:
E98137 Clockwise 500, 700, 900 series mower conditioners
Gauge shoes:
FH303331 Gauge shoe 525, 530, 535, 625, 630, 635, 730, 735, 830, and 835
AE51344 Gauge shoe, outer 910, 915, 920, 925, 930, 935, 945, and 955
AE53941 Gauge shoe, inner 910, 915, 920, 925, 930, 935, 945, and 955
AE57665 Gauge shoe 916, 926, and 936
AE56948 Gauge shoe 946 and 956



Tines for John Deere Rakes


NUMBER

DESCRIPTION/APPLICATION

AE47389 54, 64, 74, 75, 650, 652, 660, 670, 671, 672, and 673
AE47390 64, 74, 75, 660, 662, 670, 671, 672, and 673
AE56204 700 and 705

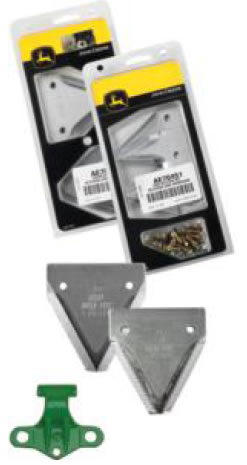

Sickle Parts for Mower/Conditioners, Auger Platforms, Drapers, and Mowers

  Dura-Cut™ Sickle Sections:
■ Made with high carbon for rugged strength
■ Cutting edges are heat-treated for longer cutting life

NUMBER

ITEM / DESCRIPTION

KITS - Knife sickle sections:
AE70451 End section and hardware, one left-hand, one right-hand, overserrated
AE70454 Overlap kit
Sections:
E76370 Overserrated Dura-Cut, chrome
E76371 Underserrated Dura-Cut, chrome
Sickle guards:
E82559 Two-tine
E62000 Two-tine
E88909 Two-tine
E88910 Two-tine
E59625 Non-clog
E88923 Non-clog
E72428 Regular with wear bar
Hold-down clips:
AE57172 Hold-down clips
AE57173 Hold-down clips
Knife head:
AE48125 Knife head



Windrow Hay Moisture Tester

windrow-tester.jpg Now test hay before you even start baling with the portable Windrow Hay Moisture Tester from John Deere. you no longer have to make a bale and use a probe-style tester to determine if your hay is ready. Instead, just add loose hay to a fve U.S.- gallon bucket, press the tester into the hay and get a quick, accurate reading. See results in 30 to 60 seconds. Measuring range: 13- to 70-percent moisture. accuracy range: +/- 2 to 4 percent.

NUMBER

DESCRIPTION

SW07140 Windrow Hay Moisture Tester



Hay Testers



NUMBER

DESCRIPTION

moister-tester.jpg Handheld moisture testers:
Moisture testers:
SW16136 18-in. probe (testing range from 14 to 44 percent)
SW16326 32-in. probe (testing range from 14 to 44 percent)
Low-moisture:
SW007320 20-in., Handheld tester (testing range from 8 to 44 percent)
SW007321 10-in., Handheld tester (testing range from 8 to 44 percent)
Bale-mounted hay testers:
SW07350 Tester mounts inside the baler for direct readout of moisture while baling (testing range from 8 to 44 percent)
SW007360 advanced Baler-Mounted Hay Moisture Tester (BHT-2)


1. Variable core valve 3. Converging wheels 5. Cover-Edge™ surface wrap kit
  This kit reduces hydraulic pressure for easier bale starts in diffcult conditions.
BE23827 – 466, 566, 567, 468, 568,
469, and 569
  These wheels are perfect for picking up
extra-wide or wind-scattered windrows –improving your haymaking productivity.
BE23893 – 6, 7, 8, and 9 Series with Regular or MegaTooth Pickups
  Ensure better weatherability and less crop spoilage. This wrap stretches over the edges of the bale to cover 15 percent more surface area.
BE32449 – 567, 568, and 569
BE32450 – 467, 468, and 469

2. Power Take-Off (PTO) driveline holder 4. High fotation tire conversion 6. Bale push bar
  This attachment makes it easier to hitch and unhitch the baler. It also makes it easier to service the PTO driveline.
AFH202165 – 6, 7, 8, and 9 Series
  These larger tires absorb shock loads in rough terrain and improve fotation on soft ground, resulting in less soil compaction. They also perform well at increased speeds for increased productivity.
BE31125 – 8 and 9 Series with MegaWide Pickup
  No more backing up when ejecting a bale. This kit features two, long, spring-loaded arms and a center bar. They push each bale rearward to ensure clearance for closing the gate.
BE24128 – 567, 568, and 569
  This is just a partial sampling of John Deere round baler attachments. Please call us for complete listings and specifc applications.
